CAIE: A Level - Mathematics 9709 - Mechanics

Kinematics of Motion [Horizontal Motion] / Sketching Graphs / Non-Uniform Motion

KEYPOINTS:

Constant Acceleration Formulae, also known as SUVAT equations

v = u + at
s = \(\frac{1}{2}\)(u + v)t
s = ut + \(\frac{1}{2}\)at²
v² = u² + 2as

Numerical value of g = 10ms^–2 will be used as per CAIE instructions

For a particle moving in a straight line, displacement, velocity and acceleration can be found by

v = \(\frac{ds}{dt}\), a = \(\frac{dv}{dt}\), v = \(\int\)a dt and s = \(\int\)v dt

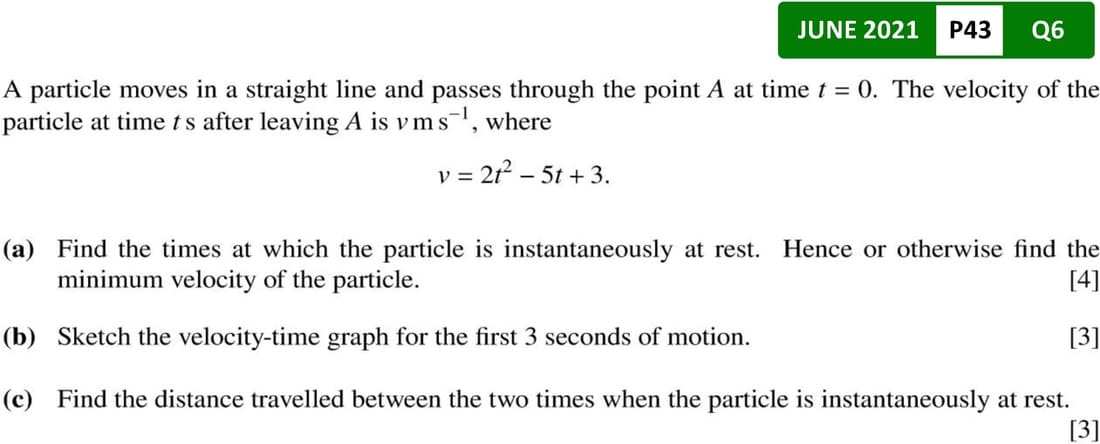

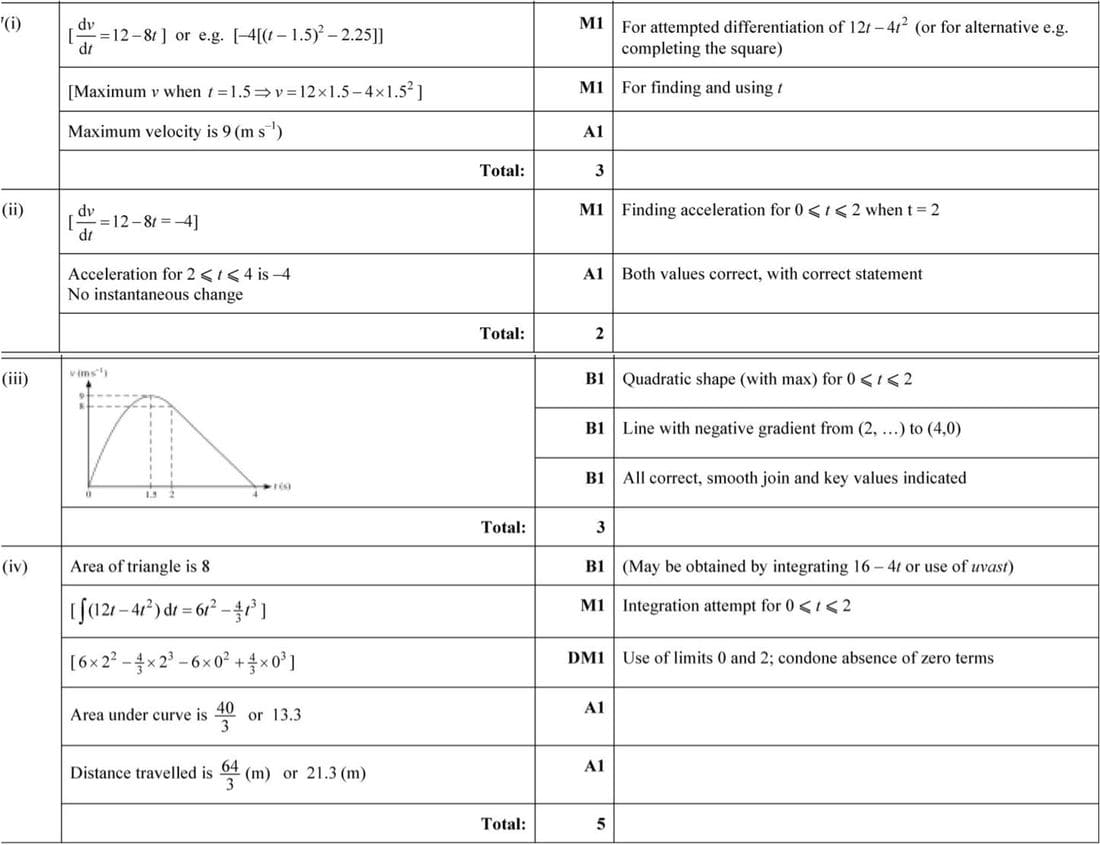

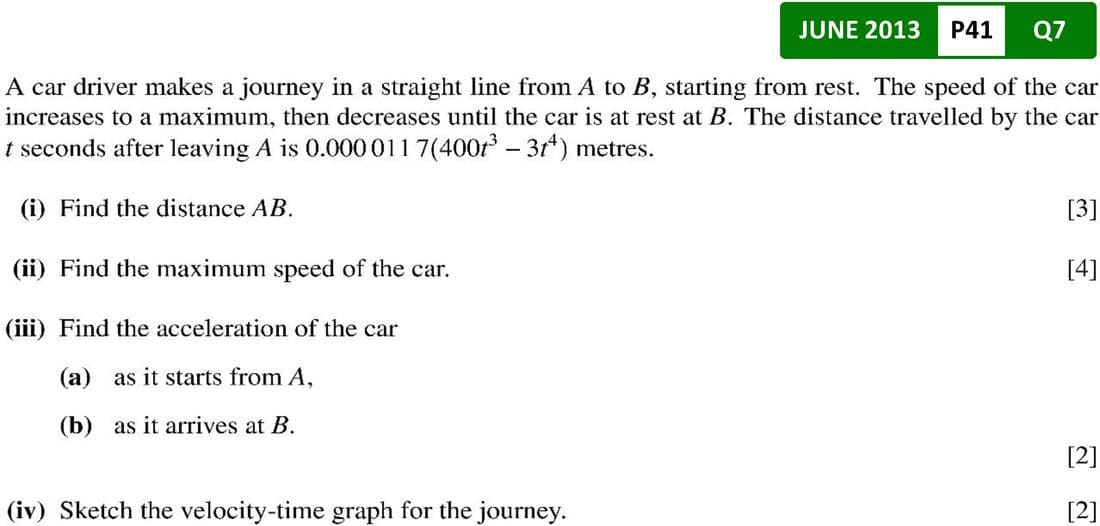

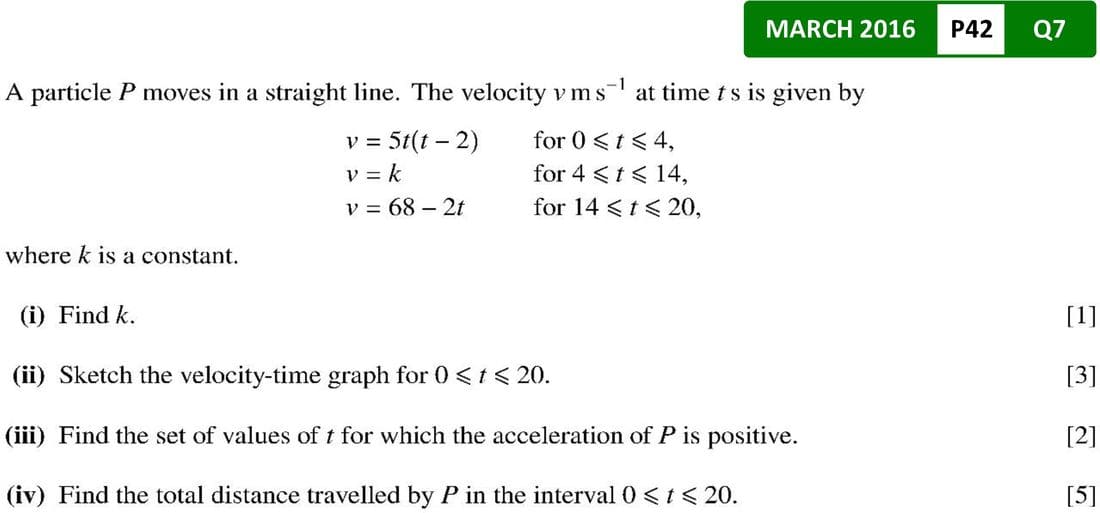

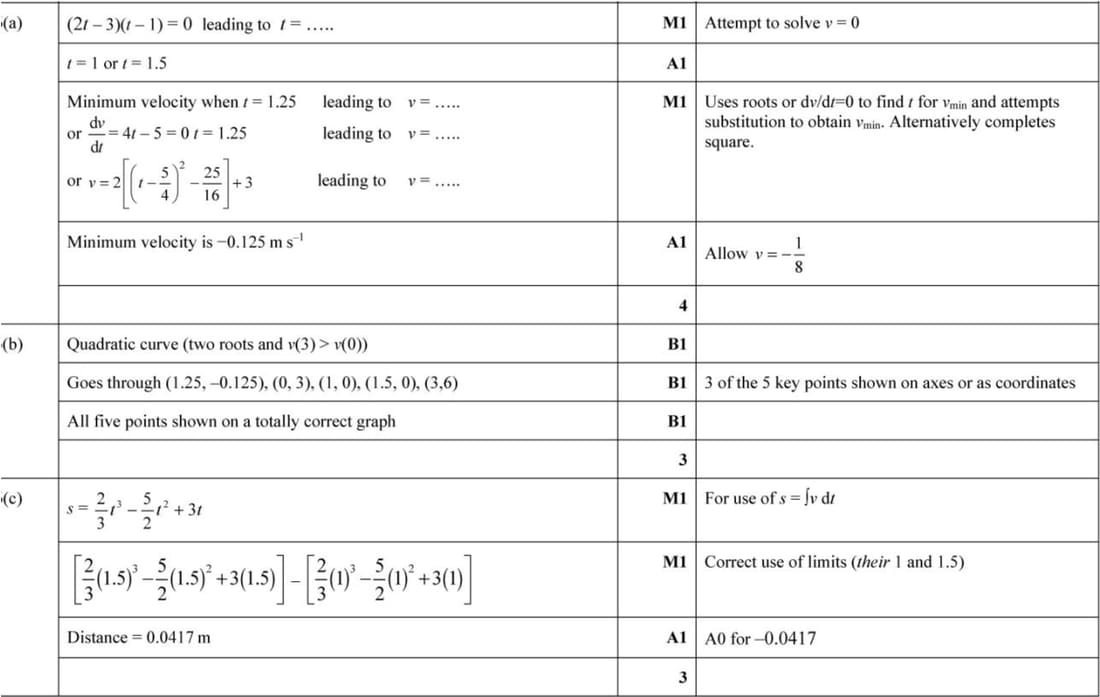

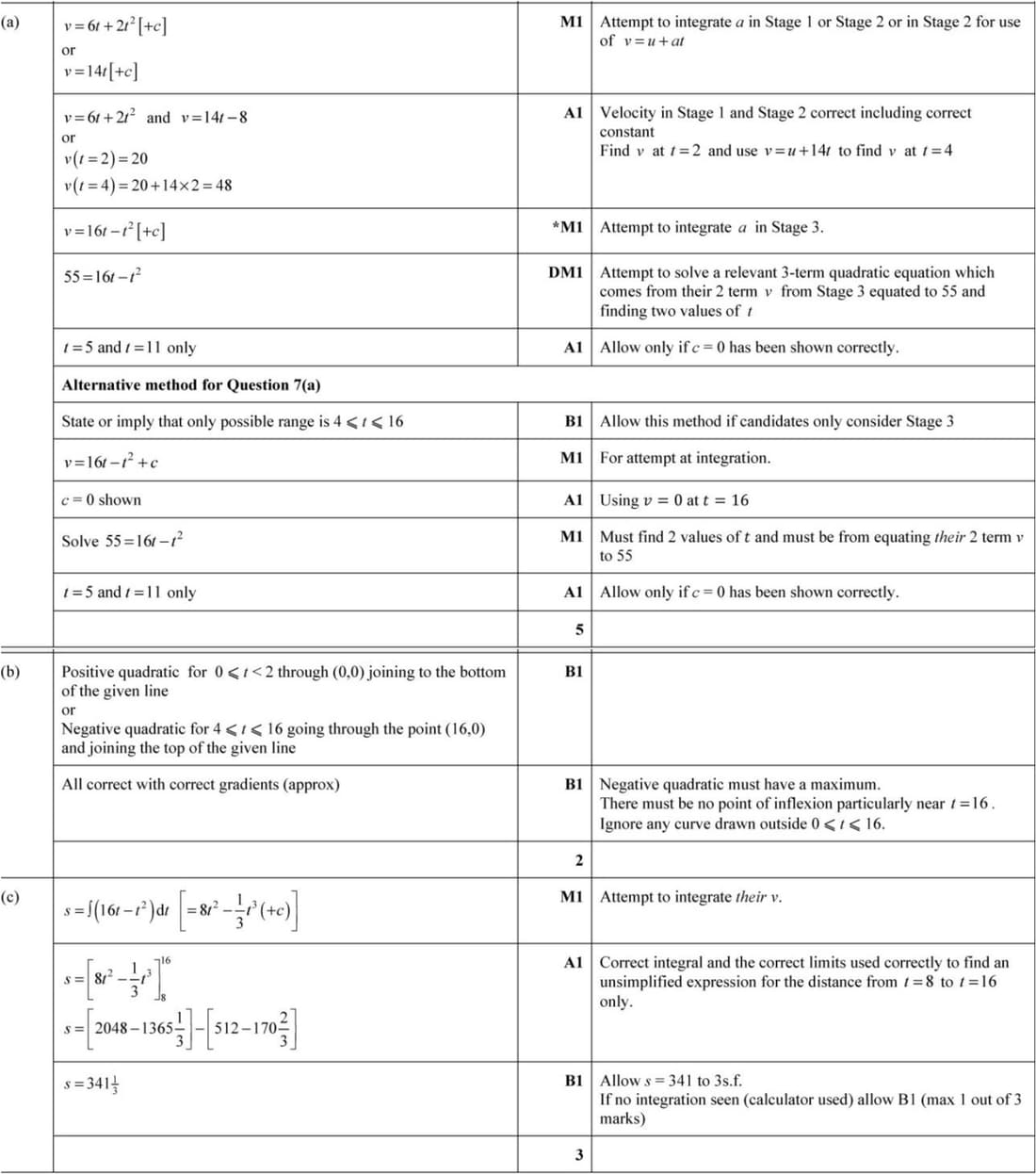

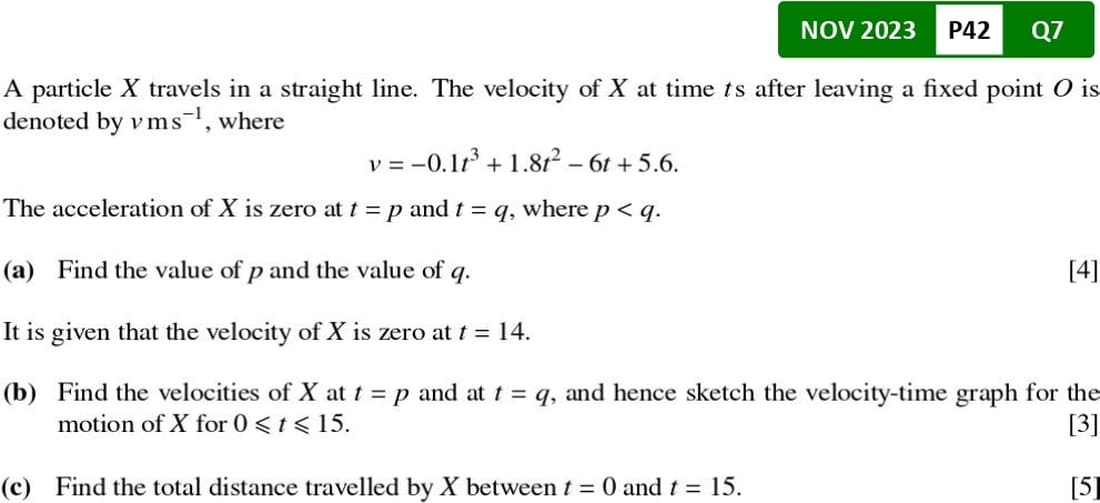

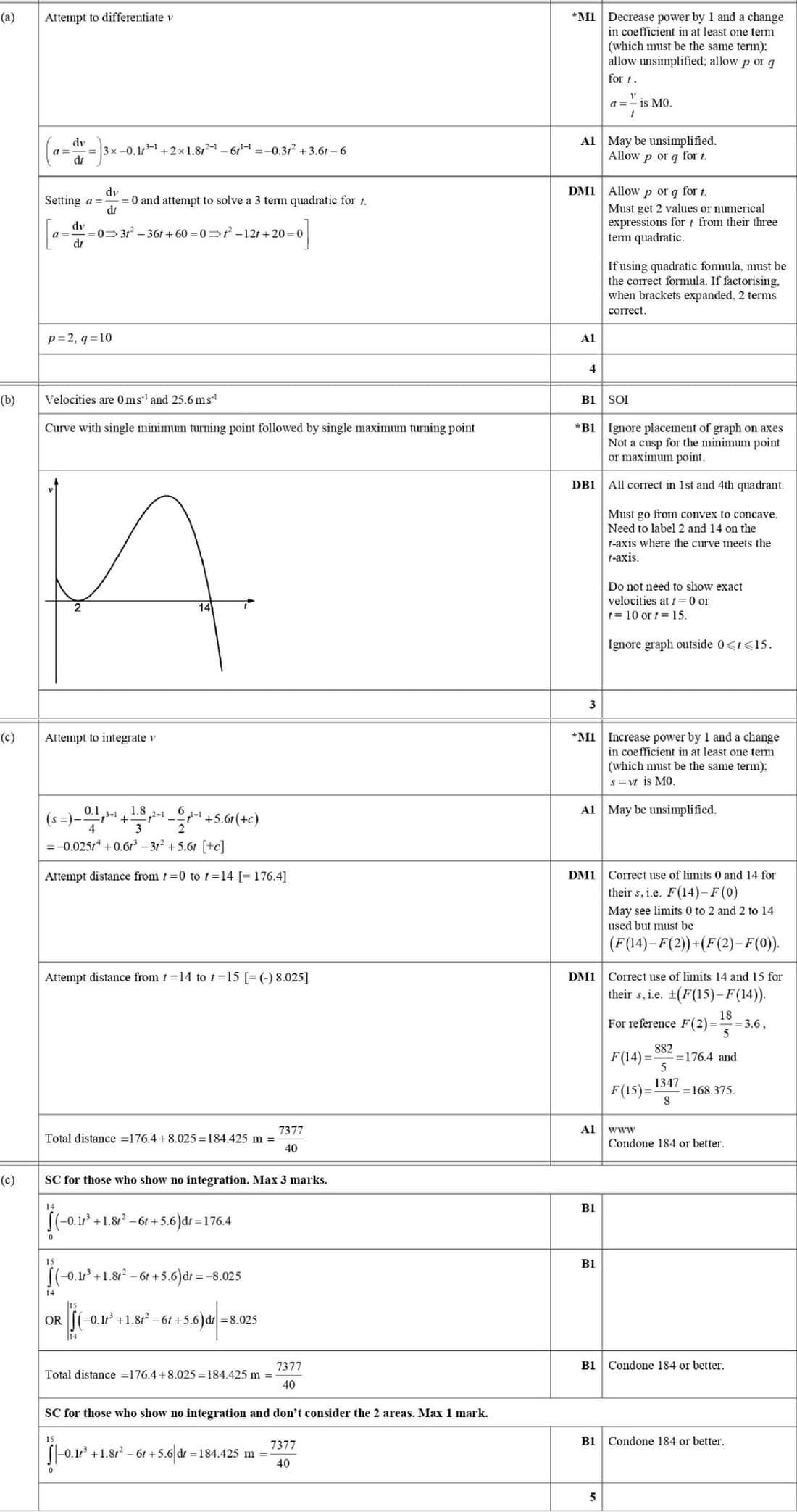

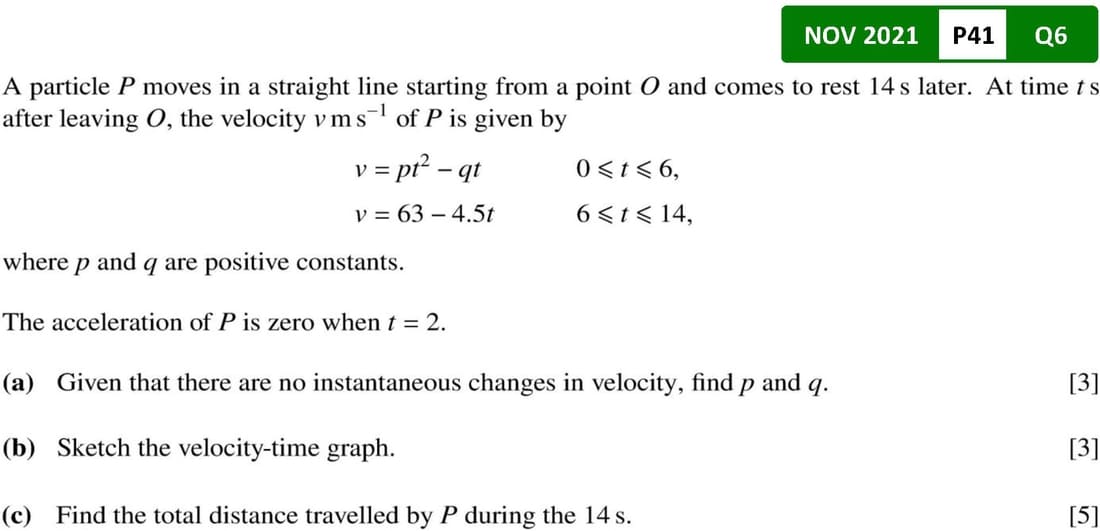

Past Papers Topic Wise Questions A Level: Mathematics 9709 - Mechanics Kinematics of Motion [Horizontal Motion] | Sketching Graphs

1

2

3

4

5

6

7

8

9

10

11

12

13

14

The questions available on this website are the sole intellectual property of cambridgeinternational.org Our role is to curate these questions into organized topics, with the intention of benefiting students.
